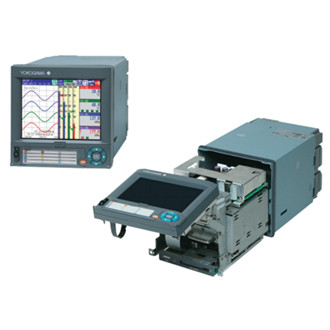

Yokogawa Papeless Videographic Recorder DX1004N-3-4-2/A1

description:100% original Yokogawa Papeless Videographic Recorder DX1004N-3-4-2/A1. ...
BASIC INFO

100% original Yokogawa Papeless Videographic Recorder DX1004N-3-4-2/A1







Quick Details



Place of Origin:

Japan

Brand Name:

Yokogawa

Model Number:

DX1000N

Mounting:

Flush panel mounting (on a vertical plane)

Allowable panel thickness:

2 to 26 mm

Material:

Case: drawn steel. Bezel: polycarbonate. Display filter: polycarbonate

Case color:

Case: Grayish blue green. (Munsell 2.0B 5.0/1.7 or equivalent)

Front panel:

Water and dust-proof

Dimensions 1:

144 (W) 144 (H) 254.1 (D) mm

Dimensions 2:

144 (W) 144 (H) 258.5 (D) mm /H2 or /PM1 option is specified

Weight:

approx. 3.7 kg without optional features

Number of inputs:

DX1002N:2 channels.DX1004N:4 channels. DX1006N:6 channels.DX1012N

Measurement interval:

DX1002N, DX1004N 125 ms, 250 m







Packaging Details: Carton, or depen on the clients' request
Delivery Detail: 8 weeks









 *1 /A1, /A2, /A3, /A4, /A5, /F2 cannot be specified together.
*2 /A5 and /F1 cannot be specified together.
*3 /C2, /C3 and /CP1 cannot be specified together.
*4 /F1 and /F2 cannot be specified together.
*5 In case that 24 VDC/AC power supply (/P1) and desktop type are specified together, /H5 must be specified.
/P1 and /H5[ ] cannot be specified together.
*6 /H5[ ]
D: Power cord UL, CSA st'd
F: Power cord VDE st'd
R: Power cord SAA st'd
J: Power cord BS st'd
H: Power cord GB st'd
*7 /N2 can be specified for only DX2010T, DX2020T, DX2030T, DX2040T and DX2048T.
*8 /TPS4, /TPS8, /A5 and /F2 cannot be specified together.
*9 In case that /TPS8 is specified, combination of /A4/F1 cannot be specified together.
*10 In case that /PM1 is specified, /A5, /F2, /M1 and /R1 cannot be specified. And
combination of /A2/F1 and combination of /A4/TPS8 cannot be specified together.
*11 /MC1 can be specified for only DX2010T, DX2020T, DX2030T, DX2040T and DX2048T.
*12 /BT2 can be specified for only DX2010T, DX2020T, DX2030T, DX2040T and DX2048T.
In case that standard memory is specified, maximum number of batches is 6.





Brief Introduction:





DX1000 series is a DAQSTATION that displays real-time measured data on a color LCD and saves data on a CompactFlash memory card (CF card). It can be hooked up to network via Ethernet, which enables to inform by Email and to monitor on Web site as well as to transfer files by using FTP. Also, it can communicate with Modbus/RTU or Modbus/TCP.


It comes with a two, four, six-channel or twelve-channel model. As the input signal, a DC voltage, thermocouple, resistance temperature detector, or contact signal can be set to each channel. The data saved on a CF card can be converted by data conversion software to Lotus 1-2-3, Excel, or ASCII format filefacilitating processing on a PC. Not only this, the Viewer software allows a PC to display waveforms on its screen and to print out waveforms.







Model Code :



DX1004N-3-4-2/A1,    DX1004N-3-4-2/A2,     DX1004N-3-4-2/A3,   DX1004N-3-4-2/C2, DX1004N-3-4-2/C3,   DX1004N-3-4-2/F1,    DX1004N-3-4-2/H2,   DX1004N-3-4-2/H5, DX1004N-3-4-2/M1,   DX1004N-3-4-2/N1,  DX1004N-3-4-2/N2,  DX1004N-3-4-2/N3, DX1004N-3-4-2/P1,    DX1004N-3-4-2/R1,  DX1004N-3-4-2/TPS2, DX1004N-3-4-2/TPS4,



DX1006N-3-4-2/P1,    DX1006N-3-4-2/R1,   DX1006N-3-4-2/TPS2, DX1006N-3-4-2/TPS4, DX1006N-3-4-2/USB1,   DX1006N-3-4-2/PM1, DX1006N-3-4-2/CC1,  DX1006N-3-4-2/BT2, DX1006N-3-4-2/CP1,      DX1006N-3-4-2/AS1,



DX1012N-3-4-2/A3,   DX1012N-3-4-2/C2,     DX1012N-3-4-2/C3,   DX1012N-3-4-2/F1, DX1012N-3-4-2/H2,   DX1012N-3-4-2/H5,   DX1012N-3-4-2/M1,   DX1012N-3-4-2/N1,  DX1012N-3-4-2/N2,   DX1012N-3-4-2/N3,   DX1012N-3-4-2/P1,   DX1012N-3-4-2/R1, DX1012N-3-4-2/TPS2,   DX1012N-3-4-2/TPS4,   DX1012N-3-4-2/USB1, DX1012N-3-4-2/PM1,



DX1002N-3-4-2/A1,   DX1002N-3-4-2/A2,     DX1002N-3-4-2/A3,  DX1002N-3-4-2/C2, DX1002N-3-4-2/C3,   DX1002N-3-4-2/F1,   DX1002N-3-4-2/H2,   DX1002N-3-4-2/H5, DX1002N-3-4-2/M1,   DX1002N-3-4-2/N1,   DX1002N-3-4-2/N2,  DX1002N-3-4-2/N3, DX1002N-3-4-2/P1,   DX1002N-3-4-2/R1,  DX1002N-3-4-2/TPS2, DX1002N-3-4-2/TPS4, DX1002N-3-4-2/USB1,  DX1002N-3-4-2/PM1, DX1002N-3-4-2/CC1,  DX1002N-3-4-2/BT2, DX1002N-3-4-2/CP1,     DX1002N-3-4-2/AS1,



-----------------------------------
