In-Situ Gas Analyzer TDLS8000



Yokogawa’s new TDLS8000 houses all of the industry’s leading features in one robust device. The platform design is for in situ measurements which negates the need for sample extraction and conditioning. The non-contacting sensor allows for a variety of process types including corrosive, abrasive and condensing. The first generation platform has been proven in many others for the measurements of O2, CO, CH4, NH3, H2O and many more NIR absorbing gases. This second generation platform has improved reliability and ease of installation and maintenance while still meeting or exceeding designed application demands.



Features



SIL2 TruePeak combined with smart laser Technology

Intuitive touchscreen HMI

HART and Modbus TCP communications standard

8-stage auto-gain adapts to difficult applications

Fully field repairable with 50 days of data and spectra storage

Compact design for one-man installation without sacrificing ruggedness

Area classification Zone2/Div2 or Zone1/Div1



System Configuration





High Reliability



Reference Cell

Internal reference cell in the laser module ensures peak locking during trace measurement.

Auto gain

Auto-gain enables wide signal ranges against dynamic variation of transmission.





Validation

Validation can be initiated manually, remotely, or automatically on a daily, weekly or monthly basis defined by the user.

SIL2 certified

IEC61508 SIL designed & approved, SIL2 capability for single analyzer use, SIL3 capability for dual analyzer use.



TruePeak



The TruePeak we can measure the area of the absorbance peak. This eliminates effects from changing background gases, allowing for simple pressure and temperature compensation.

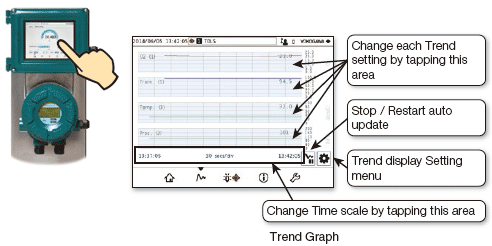

Intuitive touchscreen HMI



Touch screen 7.5 inch color LCD on HMI

Makes it simple to operate

Gives all the information including trend graph and eliminate PC to maintenance

Can be remotely installed



Mini Display

Optical transmission at both the ends for easy Alignment

Standard Specifications

Measurement object	O2, CO, CO or CH4, CO2, CO + CO2, H2O, NH3, NH3 + H2O, H2S, HCl concentration in combustion exhaust gas and process gas
Measurement system	Tunable diode laser spectroscopy
Measured components and range	Measured component		Min. range	Max. range
	O2		0-1%	0-25%
	CO(ppm)		0-200 ppm	0-10,000 ppm
	CO+CH4	CO	0-200 ppm	0-10,000 ppm
		CH4	0-5 %
	NH3		0-30 ppm	0-50,000 ppm
	H2O (ppm) in non HC		0-30 ppm	0-30,000 ppm
	H2O (ppm) in HC		0-30 ppm	0-30,000 ppm
	CO (%)		0-20 %	0-50 %
	CO (%) + CO2 (%)		0-30 %	0-100 %
	NH3 + H2O	NH3	0-30 ppm	0-5,000 ppm
		H2O	0-5 %	0-50 %
	H2S		0-5 %	0-100 %
	CO2 (%) High Range		0-1 %	0-5 %
	CO2 (%) Extend.Range		0-30 %	0-50 %
	H2O (%)		0-10 %	0-100 %
	HCl		0-50 ppm	0-5,000 ppm
Output path length	Optical distance between the laser unit and the sensor control unit Standard; 0.5 to 6 m, Max; 30 m
Output signal	2 points, 4 to 20 mA DC Output types; Gas concentration, Transmission, Process gas temperature, Process gas pressure Output range; 3.0 to 21.6 mA DC
Digital communication	HART, Ethernet
Contact outputs	2 points, contact rating 24 V DC, 1 A DO; Function: Activate during Warning / Calibration / Validation / Warm up / Maintenance conditions Fault; Function: Activate during normal condition, not activate during fault condition or when the system power is off
Valve control output	2 points Function; Activate calibration or validation solenoid valves for zero, span or validation gas Output signal; 24 V DC, 500 mA Max. per terminal
Alarm	Warning; Gas concentration low/high, Transmission low, Process pressure low/high, Process temperature low/high, Validation required, Validation failure, Zero/Span calibration error, Non process alarm, External alarm Fault; Laser module temperature low/high, Laser temperature low/high, Detector signal high, Peak center out of range, Reference peak height low, Absorption too high, Transmission lost, Reference transmission low, Reference peak height high, Laser unit failure, Laser module error, File access error, E2PROM access error.
Contact inputs (Digital input)	2 points Function; External alarm/Calibration start/Validation start/Stream switch Contact specification; Zero voltage contact input Input signal; Open signal; 100 kΩ or more, Close signal; 200 Ω or less
Input signal (Analog input)	2 points, 4 to 24 mA DC Input types; Process gas temperature, Process gas pressure
Self-diagnostics	Laser Unit temperature, Sensor Control Unit temperature, Laser temperature, Detector signal level, Memory read/write function, Peak locking condition
Calibration	Calibration method; Zero/Span calibration Calibration mode; Manual, Auto, Local initiate (HMI)
Validation	Validation method; Up to 2 points Validation mode; Manual, Auto, Local initiate (HMI)
Power supply	24 V DC ±10%
Warm-up time	5 min.
Protection degree	IP66, NEMA Type 4X
Hazardous area classifications	Division 1, Zone 1; Explosion-proof/ Flame-proof type; FM, cFM, ATEX, IECEx (Pending) Division 2, Zone 2; Non-Incendive/Type n; FM, cFM, ATEX, IECEx, KOSHA, NEPSI
Process gas condition	Process gas temperature; Maximum 1500℃ Process gas pressure; Max. 1 MPa, Min. 90 kPa Dust in process gas; 20 g/m3 or less
Installation condition	Ambient operating temperature; -20 to 55℃ Storage temperature; -30 to 70℃ Humidity; 0 to 95%RH at 40℃ (Non-condensing) Mounting flange type; ASME B 16.5, DIN, JIS Gas connections; 1/4 NPT or Rc1/4 Purge gas;    Recommended purge gasses    O2 analyzer; N2 (99.99% or greater, application dependent)  H2O ppm analyzer; N2 (99.99% or greater with < 20 ppm H2O for feed to the optional dryer package) CO, CO or CH4, CO2, CO+CO2, NH3, NH3+H2O, H2S, HCl;    N2 (99.99% or greater, application dependent) or Instrument air  CO, NH3 analyzer: N2 (99.99% or greater, application dependent) or Instrument air Purge gas flow rates;    5-20 L/min for optic    5-30 L/min for process window Purge gas connections;    1/4NPT (-G1, -C2, -D2, -C2, -D1, -C1),    Rc1/4 (-G2, -S2, -E2, -J2, -E1, -J1)

Performance

Measurement gas		Repeatability	Linearity
O2		± 1% reading or ± 0.01% O2, whichever is greater	± 1% F.S.
CO (ppm)		± 2% reading or ± 1 ppm CO, whichever is greater	± 1% F.S.
CO + CH4	CO	± 1% reading or ± 1 ppm CO, whichever is greater	± 2% F.S.
	CH4	± 4% reading or ± 0.02% CH4, whichever is greater	± 4% F.S.
NH3		± 2% reading or ± 1 ppm NH3, whichever is greater	± 2% F.S.
H2O (ppm) in non HC		± 2% reading or ± 0.1 ppm H2O, whichever is greater	± 1% F.S.
H2O (ppm) in HC		± 2% reading or ± 0.1 ppm H2O, whichever is greater	± 1% F.S.
CO (%)		± 1% reading or ± 0.01% CO, whichever is greater	± 1% F.S.
CO (%) + CO2 (%)	CO	± 1% reading or ± 0.1% CO, whichever is greater	± 1% F.S.
	CO2	± 1% reading or ± 0.1% CO2, whichever is greater	± 1% F.S.
NH3 + H2O	NH3	± 2% reading or ± 1 ppm NH3, whichever is greater	± 2% F.S.
	H2O	± 4% reading or ± 0.05% H2O, whichever is greater	± 2% F.S.
H2S		± 1% reading or ± 0.005% H2S, whichever is greater	± 1% F.S.
CO2 (%) High Range		± 1% reading or ± 0.005% CO2, whichever is greater	± 1% F.S.
CO2 (%) Extend. Range		± 1% reading or ± 0.02% CO2, whichever is greater	± 1% F.S.
H2O (%)		± 1% reading or ± 0.004% H2O, whichever is greater	± 1% F.S.
HCL		± 1% reading or ± 2.5 ppm H2O, whichever is greater	± 2% F.S.YH8000 HMI Unit

The YH8000 is a HMI designed specifically for the Tunable Diode Laser Gas Analyzer, the TDLS8000.

• Touchscreen 7.5 inch color LCD on HMI
• Makes it simple to operate
• Can be remotely installed
• Up to 4 units connection available
• Specification

Display	Touchscreen 7.5 inch TFT color LCD panel, 640 x 480 (VGA)
Communication	Ethernet; RJ-45 connector, Communication speed; 100 Mbps
Protection degree of enclosure	IP65, NEMA Type 4X
Weight	4 kg
Mounting	Analyzer mount (Front, left-side, right-side) with tilt function, Pipe mount or Panel mount
Cable Entries	1/2NPT or M20 x 2
Installation conditions	Ambient operating temperature; -20 to 55℃ Storage temperature: -30 to 70℃ Humidity: 10 to 90%RH at 40℃ (Noncondensing)
Power Supply	24 V DC ±10%
Hazardous area classifications	Division 2, Zone2: Non-Incendive/Type n; FM, cFM, ATEX, IECEx, KOSHA, NEPSI
