Production Description

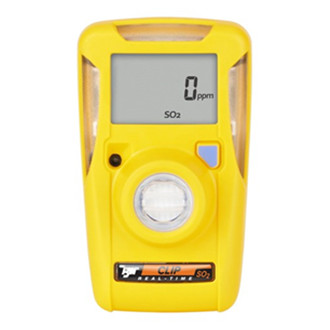

Are you looking for dependable sulfur dioxide (SO2) detection for your work environment? How about something that is small and simple to use? You also might be looking for equipment that will not break your budget and meet full industry standards of compliance. Consider the BW Clip BWC2-S24.
This compact and powerful SO2 monitor is one of the easiest models to use. For instance, all you need to do is turn the monitor on and it takes care of the rest. It constantly monitors the SO2 gas in the air and is completely maintenance free. This means no charging batteries, changing sensors, or batteries, for two whole years. No calibration is necessary either. When you have the BWC2-S24 at your side, you can concentrate on your job and leave the gas monitoring to your equipment.
Compatibility
Works with MicroDock II instrument docking systems and Fleet Manager programs. Plus, if you use IntelliDoX management your can enjoy these features.
- No need for a computer
- Test multiple gas monitors at the same time
- Fleet management is very easy
- Adjustable alarm and parameters
- Quick and simple bump tests
Advanced Technologies to ensure worker safety and maximize productivity:
- • Reflex Technology™ - gives you self testing features every 24 hours. This is the best way to know that your monitors are working and functioning at peak efficiency for maximum worker safety.
- • Surecell™ - unlike standard electromechanical gas sensors, Surecell™ offers dual reservoir technology. This lets your gas monitor function no matter how cold, warm, or wet, your work environment becomes. In fact, it can work in temperatures as high as 122F or as low as 30 below zero.
Standard features:
- Two year warranty
- Compact and light
- Affordable operation
- Simple to use – one button
- 95 db audible alarm - to insure safety it also flashes and vibrates
- Keeps track of 35 gas readings or tests
- Electronics, sensor, and battery, are all self-testing
- Two year warranty
Optional settings:
- Alarm with gas readings
- Set display for time
- Bump test reminding
Part Number: BWC2S24
| Size | 1.6 x 2.0 x 3.4 in. / 4.1 x 5.0 x 8.7 cm |
| Weight | 3.2 oz. / 92 g |
| Temperature |
H2S: -40 to +122°F / -40 to +50°C CO: -22 to +122°F / -30 to +50°C O2: -4 to +122°F / -20 to +50°C SO2: -22 to +122°F / -30 to +50°C |
| Humidity | 5% - 95% RH (non-condensing) |
| Alarms | Visual, vibrating, audible (95 dB) • Low, High |
| Tests | Activated detectors automatically perform one internal diagnostic test every 24 hours. |
| Typical battery life | Two years (H2S, CO, O2 or SO2) or three years (H2S or CO) |
| Event logging | 35 most recent events |
| Ingress Protection | IP 66/67 |
| Warranty | Two or three years from activation (given normal operation), plus one year shelf life (6 months for O2). Up to three years for two-year H2S and CO detectors when used with the hibernation feature, limited to 24 months of detector operation. |
Sensor Specifications
|
Gas
|
Measuring Range
|
Low Alarm Level
|
High Alarm Level
|
| 2 or 3 year detector | |||
| H2S |
0 -100 ppm
|
10 ppm
|
15 ppm
|
| CO |
0 - 300 ppm
|
35 ppm
|
200 ppm
|
| 2 year detector only | |||
| O2 |
0 - 25.0 % by vol.
|
19.5 %
|
23.5 %
|
| SO2 |
0 - 100 ppm
|
5 ppm
|
|
----------------------------------
